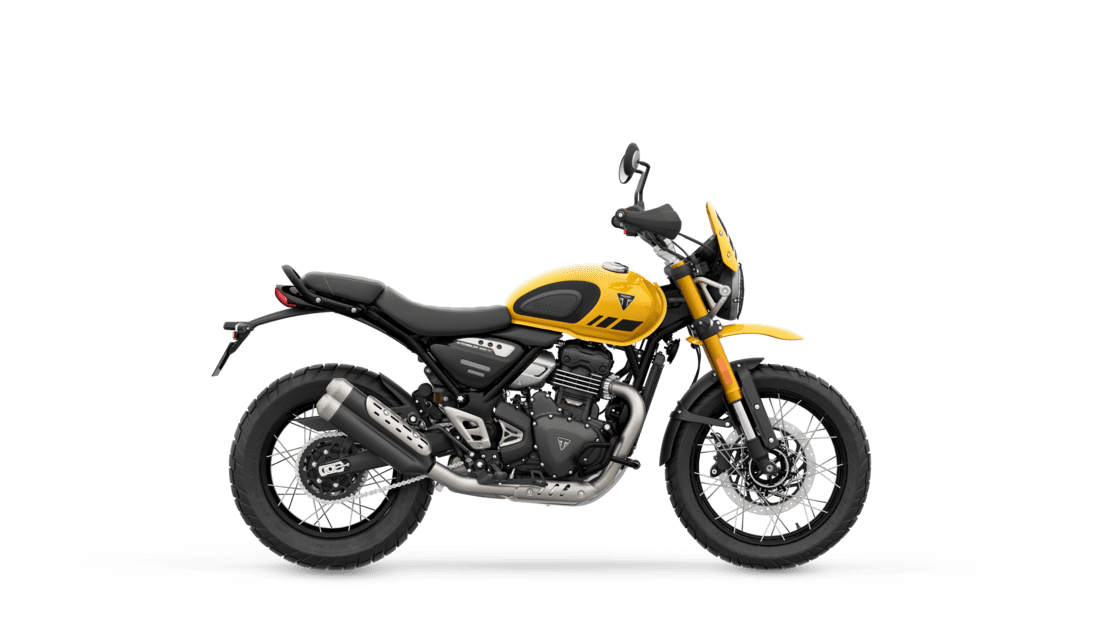

Experience rugged Triumph Scrambler attitude and ability.
- Engine & Transmission
- Chassis
- Dimensions and weights
- Fuel Consumption
- Service
Type
Capacity
Bore
Stroke
Compression
Max Power EC
Max Torque EC
System
Exhaust
Final Drive
Clutch
Gearbox
Liquid-cooled, single-cylinder, 4 valve, DOHC
398 cc
89.0 mm
64.0 mm
12:1
40 PS / 39.5 bhp (29.4 kW) @ 8,000 rpm
37.5 Nm @ 6,500 rpm
Bosch electronic fuel injection with electronic throttle control
Stainless twin-skin header system with stainless steel silencer
X-ring chain
Wet, multi-plate, slip & assist
6 speed
Frame
Swingarm
Front Wheel
Rear Wheel
Front Tyre
Rear Tyre
Front Suspension
Rear Suspension
Front Brakes
Rear Brakes
Instrument Display and Functions
Hybrid spine/perimeter, tubular steel, bolt-on rear subframe
Twin-sided, cast aluminium alloy
Spoked Tubeless, 19 x 2.5 in
Spoked Tubeless, 17 x 3.5 in
100/90-19
140/80-17
43mm upside down Big Piston forks. 150mm wheel travel
Gas monoshock RSU with external reservoir and pre-load adjustment. 150mm wheel travel
Single 320mm fixed disc, four-piston radial caliper, ABS
Single 230mm fixed disc, single piston floating caliper, ABS
Analogue speedometer with integrated multi-function LCD screen
Height Without Mirror
Seat Height
Wheelbase
Rake
Trail
Tank Capacity
Wet Weight
1169 mm
835 mm
1418 mm
23.2 °
108 mm
13 L
186 kg
Fuel Consumption
3.8 litres / 100 km
Service Interval
10,000 miles (16,000km)/12 months (whichever comes first)
