/ Grand American Touring

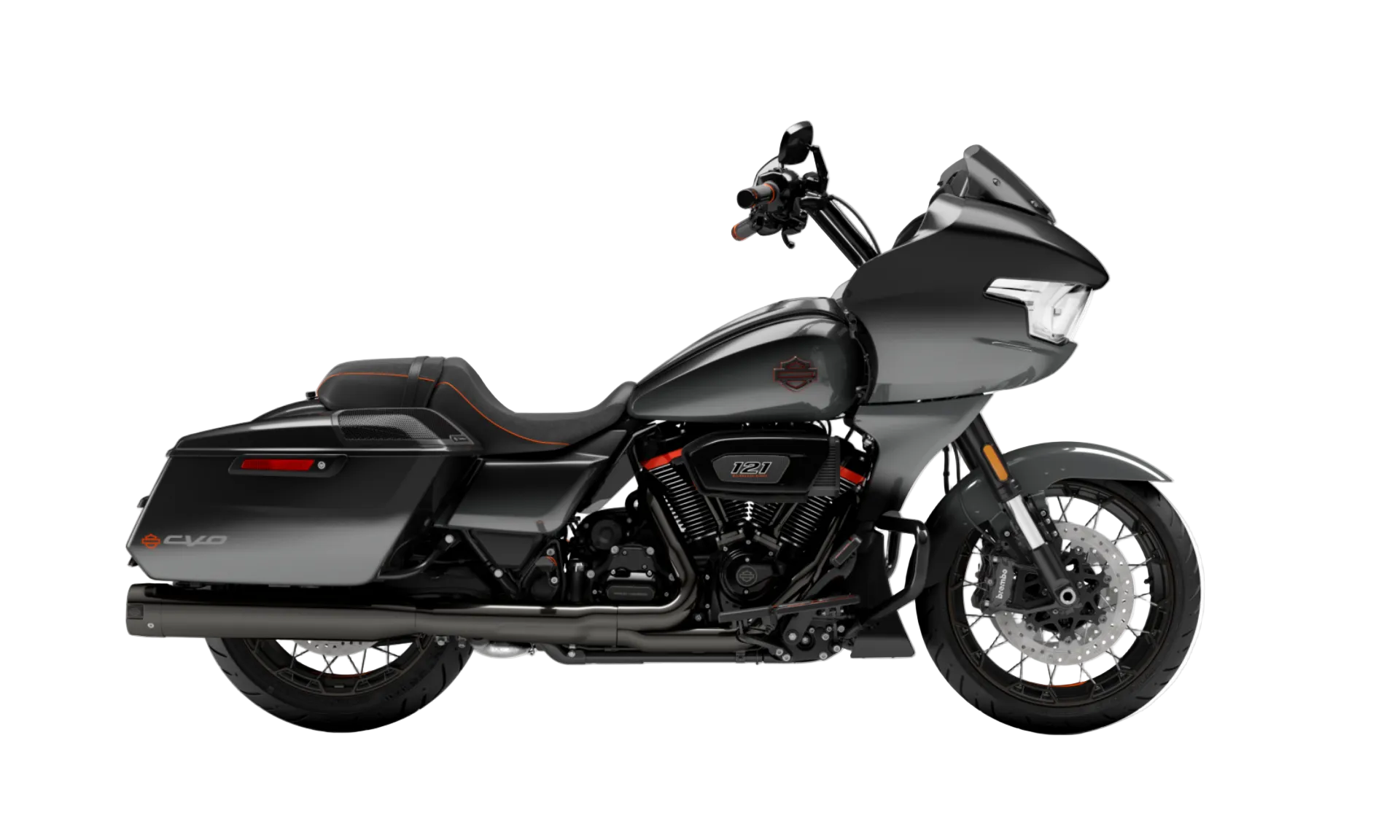

2025 CVO™ Road Glide™

2025 CVO™ Road Glide™
Book a test ride

NEED FINANCE?

Enquire now

THIS IS THE RIGHT BIKE FOR
Riders seeking bold styling and performance
Enthusiasts who don’t hold back
The best of absolutely everything installed from the factory

EVERYTHING ELEVATED.

The CVO Road Glide not only has an iconic Sharknose fixed fairing, but also the best of absolutely everything installed from the factory, including the Milwaukee-Eight™ VVT 121 V-twin engine and next-level custom trim and finishes uniquely designed to match each world-class paint scheme.

Detailed Specifications

  • Engine
  • Dimensions
  • Performance
  • Drivetrain
  • Chassis
  • Electric
Engine
Bore
Stroke
Displacement
Compression Ratio
Fuel System
Exhaust
Milwaukee-Eight™ VVT 121
103.5 mm
117.5 mm
1,977 cc
11.4:1
Electronic Sequential Port Fuel Injection (ESPFI)
2-1-2 dual exhaust with tapered mufflers
Length
Ground Clearance
Rake
Trail
Wheelbase
Tyres, Front Specification
Tyres, Rear Specification
Tyre, Type
Fuel Capacity
Oil Capacity (w/filter)
Weight, In Running Order
Luggage Capacity-Volume
2,410 mm
145 mm
26
170 mm
1,625 mm
130/60B19 M/C 61H
180/55B18 M/C 80H
Dunlop™ Harley-Davidson Series, bias blackwall front and rear
22.7 l
4.7 l
393 kg
0.062 m3
Engine Torque Testing Method
Engine Torque (rpm)
Horsepower
Lean Angle, Right (deg.)
Lean Angle, Left (deg.)
Fuel Economy Testing Method
Fuel Economy
EC134/2014
3,500
115 HP / 86 kW @ 5020 rpm
32
32
EU 134/2014
6 l/100 km
Primary Drive
Gear Ratios (overall) 1st
Gear Ratios (overall) 2nd
Gear Ratios (overall) 3rd
Gear Ratios (overall) 4th
Gear Ratios (overall) 5th
Gear Ratios (overall) 6th
Chain, 34/46 ratio
10.534
7.302
5.423
4.392
3.741
3.157
Front Fork
Rear Shocks
Wheels, Front Type
Wheels, Rear Type
Brakes, Caliper Type
49mm Dual Bending Valve
Hand-Adjustable emulasion Rear Suspension
Cast Aluminum
Cast Aluminum
Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake
Lights (as per country regulation), Indicator Lamps
Gauges
Headlamp: Dual Daymaker LED 40-watt, 1,060 lumen low beam, 60-watt, 1,560 lumen high beam; Tail/Stop: Incandescent; Front Signal Lights: Incandescent
Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator
